Refractory Grade Silicon Carbide

Refractory Grade Silicon Carbide

Refractory grade silicon carbide is widely used in the production process of ceramics, with very good high temperature resistance, can be used in high temperature and high pressure environment. Refractory grade silicon carbide can be divided into several grades, such as 97#, 95#, 92#, 90#, 88# and 85#, with a particle size of 200 mesh. As different users have different applications, manufacturers can process refractory grade silicon carbide into lumps, grains or powders of different particle sizes to meet the needs of different users.

Email Phone WhatsApp Message

Product Overview

Brand Name: Oriental Honor New Material
Product: Refractory Grade Silicon Carbide
Place of Origin: Gansu, China
Color: Black
Shape: Lump, Grain, Powder
Size: 0-1mm, 1-3mm, 3-5mm, 100Mesh Or 200Mesh
Chemical Composition: SiC, F.C,Fe2O3
Packing: 1 Ton Jumbo Bag
Delivery time: 7~15 Days
Sample: Availiable
Application: Ceramics, Coatings, Wear-resistant parts
Port: Tianjin

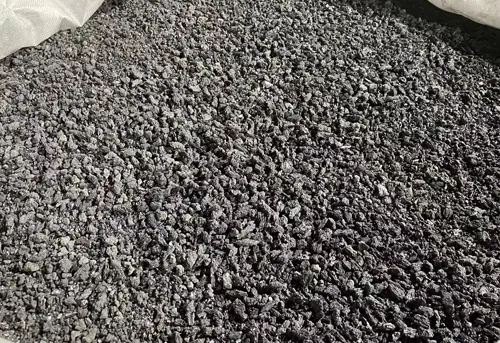

What Is Refractory Grade Silicon Carbide?

Refractory grade silicon carbide is a polycrystalline compound composed of silicon and carbon with the chemical formula “SiC”, which is characterized by high temperature resistance, corrosion resistance and high strength. Fire-resistant grade silicon carbide is able to maintain stability and strength at extremely high temperatures, withstanding temperatures as high as 2,000 degrees Celsius. It is also highly resistant to acidic or alkaline chemically corrosive liquids, and refractory grade silicon carbide performs well when subjected to higher tensile and compressive strength tests. Due to its excellent properties, it is widely used in the production processes of ceramics, metallurgy and abrasives.

$what is refractory grade silicon carbide$

Specification Of Refractory Grade Silicon Carbide

Specifications	Chemical composition
Specifications	SiC	F.C	Fe2O3	H2O
SiC 97%,200M	97.00	0.50	0.50	0.10
SiC 85%,200M	85.00	3.00	2.00	0.10
SiC 88%,200M	88.00	2.50	1.80	0.10
SiC 90%,200M	90.00	2.00	1.60	0.10
SiC 92%,200M	92.00	1.50	1.40	0.10
SiC 95%,200M	95.00	1.00	1.00	0.10
SiC 96%,200M	96.00	0.70	0.70	0.10
SiC 90%,0-1mm/1-3mm/3-5mm/100M	90.00	2.00	1.60	0.10
SiC 92%,0-1mm/1-3mm/3-5mm/100M	92.00	1.50	1.40	0.10
SiC 95%,0-1mm/1-3mm/3-5mm/100M	95.00	1.00	1.00	0.10
SiC 97%,0-1mm/1-3mm/3-5mm/100M	97.00	0.50	0.50	0.10
Size could be customized according to customers’ requirements
Packaging: in big bag / 25kg / 10kg / customized

Click Here

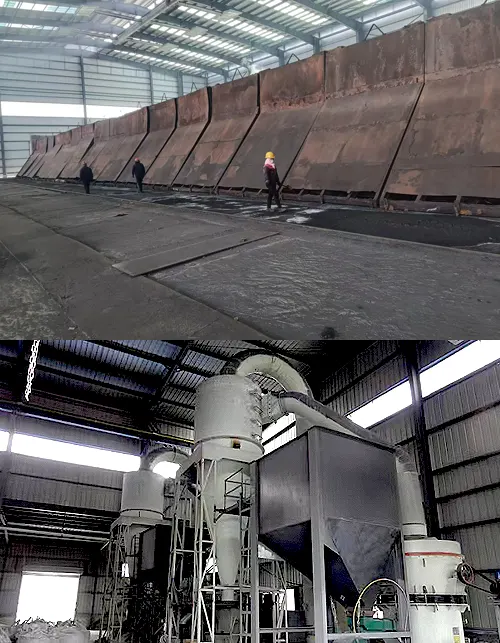

Production method And Processing For Refractory Grade Silicon Carbide

Production Process For Refractory Grade Silicon Carbide
Before producing refractory grade silicon carbide, quartz sand, petroleum coke and wood chips with high purity need to be prepared as raw materials for refractory grade silicon carbide. High purity quartz sand is rich in silica, which directly affects the grade of silicon carbide. Therefore, it needs to be screened by strict manual and precision instruments before production to ensure that the refractory grade silicon carbide produced meets user requirements. After that, the staff will mix the raw materials proportionally and add other synthetic materials according to user requirements. After mixing, the materials will go through the molding process to form the initial shape of refractory grade silicon carbide. Since refractory grade silicon carbide needs to be sintered in a high-temperature environment, it is usually heated by an electric furnace to make the bond between the silicon carbide particles stronger, and enhance its mechanical properties and wear resistance. The sintered refractory grade silicon carbide also needs to be ground and polished on its surface to enhance its corrosion resistance.
Refractory Grade Silicon Carbide Processing
As different users have different use environment, we need to process the produced refractory grade silicon carbide. First of all, we will manually screen the refractory grade silicon carbide according to the grade, and then it will be detected by the automated screening equipment, and then it will be preliminarily processed by the professional crushing equipment. After preliminary processing, the refractory grade silicon carbide is in the form of small particles, with particle sizes of 1mm-3mm, 3mm-5mm and 5mm-10mm, which will be filtered through the screen, and the ones that do not meet the requirements will be re-processed by the equipment. If users need powdered refractory grade silicon carbide, we also use more precise grinding equipment to process them, they will be processed into powder with particle size of 200Mesh, 300Msesh. The processed refractory grade silicon carbide will be transported to the packing area by the conveyor machine, and usually packaged in tonnage bags, iron drums and sachets, with appropriate moisture-proof treatment, and finally loaded by forklift trucks, waiting for shipment.

$production method and processing for refractory grade silicon carbide$

Advantage Of Refractory Grade Silicon Carbide

Silicon Carbide has the characteristics of corrosion resistance, high temperature resistance, high strength, good thermal conductivity, impact resistance and so on.

Applications Of Refractory Grade Silicon Carbide

Ladle and furnace aggregates and castables.
SiC based firebrick.
Silicon carbide mortar.
Deoxidizer for steelmaking.
Kiln equipment, such as poles, boards, etc.
Heat resistant ceramics.
Ceramic nozzles and filters for metallurgy and casting.
Fire resistant and heat insulating coating.
Thermal insulation filler.

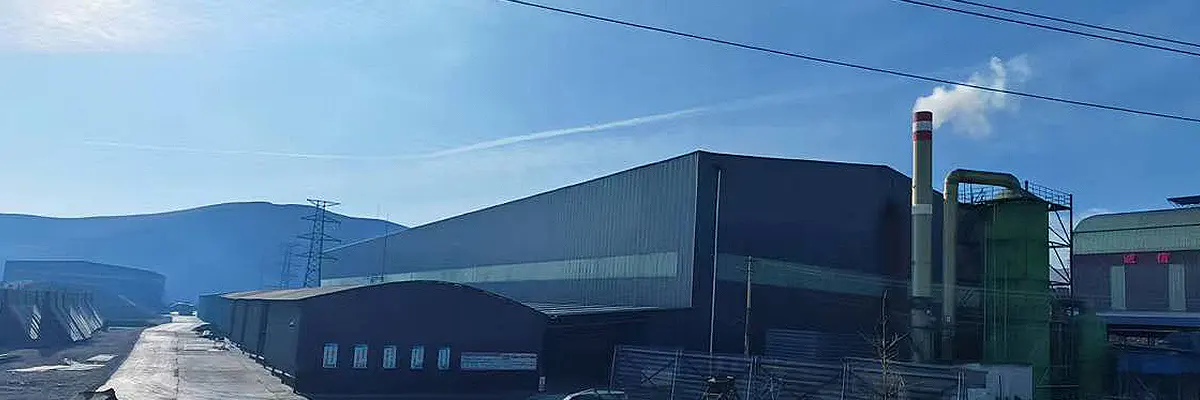

Refractory Grade Silicon Carbide From TOH

TOH (Tianjin Oriental Honor New Material) is an experienced refractory grade silicon carbide manufacturer with a worldwide customer base. We have advanced equipment and facilities, and have constructed an independent refractory grade silicon carbide research and development experimental base. Our refractory grade silicon carbide process mainly consists of several steps, including raw material selection, instrument screening, smelting in furnace and cooling and molding. Before production, the raw materials will go through the preliminary manual sunshine selection to remove the debris and dust, and then the precision instruments will remove the raw materials with high content of impurities. Each step is operated by professional personnel to ensure that the purity of silicon carbide meets the requirements.

Besides, we will submit our refractory grade silicon carbide to authoritative third-party testing organizations, such as ISO9001, BV and SGS, for testing and issuing corresponding test reports to ensure that the quality of silicon carbide meets users’ requirements. In order to facilitate users to test and try, we provide users with free samples of refractory grade silicon carbide, and support sending samples to any third-party testing organizations for testing and issuing test reports.

TOH provides 2X24X365 online service for all users in order to better serve them, and has a professional technical team ready to solve any problems encountered in the process of using refractory grade silicon carbide for all users. Over the years, TOH has been widely praised within the user community and won the trust of users with its high quality refractory grade silicon carbide and perfect after-sales service.

Some Questions About Refractory Grade Silicon Carbide

Can You Provide Samples Of Refractory Grade Silicon Carbide?

We provide users with about 1kg~3kg samples to help users test and assay, you only need to spend a small amount of freight.

Are Previous Sgs, Bv And ISO9001 Quality Inspection Reports Available?

We provide previous test reports from authorities such as SGS, BV and ISO9001 for users to view information related to refractory grade silicon carbide.

What Payment Methods Does Your Company Support?

We support L/C, TT, Western Union and other trading methods, although we cover the commonly used trading methods in the market, we still recommend you to contact our customer service staff to learn more about the trading methods.
